تفاصيل المنتج:
|
| خدمة المعالجة: | صب، قطع، التشذيب | مكان المنشأ: | قوانغدونغ ، الصين |
|---|---|---|---|
| نوع التعديل البلاستيكي: | صب الحقن | لون: | لون مخصص |
| ميزة: | صديقة للبيئة | الانتهاء من السطح:: | لامعة، على نحو سلس، اللوحة، الملمس الخ. |
| إبراز: | beverage bottle cap injection mould,multi cavity bottle cap mould,precision injection mould for caps,multi cavity bottle cap mould,precision injection mould for caps |
||
Characteristic:
Comprehensive Range of Models to Meet Various Needs
We offer a complete range of mold models from single cavity (1×1) to multi-cavity (1×32), providing flexible solutions tailored to different production volumes and product sizes, helping customers achieve efficient manufacturing and cost optimization.
High-Quality Stainless Steel Plates for Durability
Mold plates are made from premium stainless steel, delivering excellent corrosion resistance and wear resistance to ensure mold stability and longevity throughout extended production cycles.
Standardized, Interchangeable Mold Components
All mold parts are designed with standardized specifications for easy disassembly and replacement, reducing maintenance time and enhancing mold serviceability and production continuity.
Innovatively Designed Specialized Nozzles
Featuring uniquely engineered nozzles that optimize the flow path of injection material, improving melt uniformity and injection efficiency, thereby enhancing the molded product's quality.
High-Performance Hot Runner System for Uniform Distribution
The advanced hot runner system is precisely designed to ensure even distribution of plastic melt and air pressure across all cavities, preventing defects caused by uneven flow and improving product consistency and yield.
Precision CNC Machining Throughout
All critical mold components are manufactured using high-precision CNC equipment to guarantee dimensional accuracy and surface quality, boosting overall mold performance and product refinement.
| Plastic material | ABS/PP/PC/PE/PVC/TPE/TPU... |
| Material of mould | 45#/50#/P20/718/2738/NAK80/S136 |
| Mould Standard | LKM; HASCO; DME |
| Runner System | hot/cold runner |
| Cavity | Single or Multi Cavities |
| Mould life | 300,000-500,000shots |
| Surface treatment | Polishing/smooth,texture/frosted, painting, plating, printing |
| Experience | 10 years experience in plastic injection mold making and plastic products |
| Certification | ISO9001:2015 |

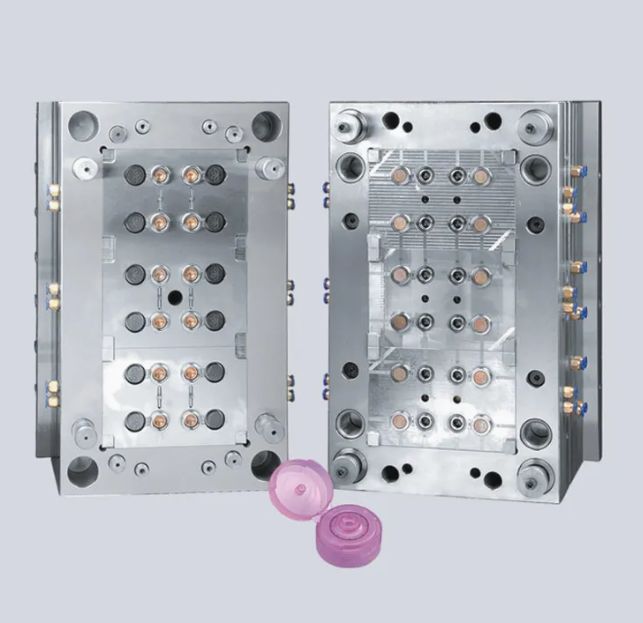

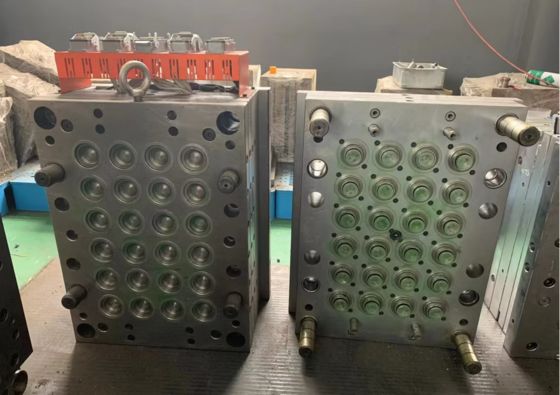

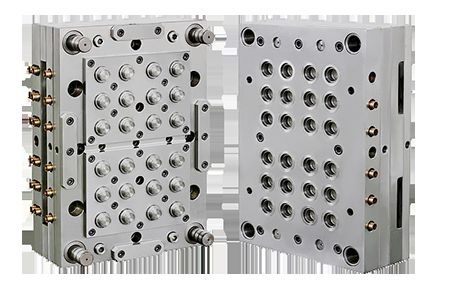

| Product name | Multi Cavity Injection Mould/plastic Injection Mold For plastic Cap |
| Tolerance | 0.02mm -0.05mm |
| Mould Base | LKM.HASCO |
Our tooling work is able to make different size of molds with single cavity or multi cavities. With your product data, our engineer can provide you the feasible project with low price and high quality. Below shows our manufacturing ability:
1. Maximum mold size 2500mm*2000mm*1500mm
2. The highest machining precision: ± 0.005mm
3. The highest injection precision: ± 0.03mm
4. Experience of high precision molds and custom injection molding for healthcare and high-grade appearance parts
5. Delivery time for each mold is 25-45 days, depending its complexity.
6. We equip our own high precision CNC machines, EDMs, Wire cut machines, mirror EDM, three-coordinates measuring machine to ensure the quality of both mold and injection parts.
The application of pet preform molds
The most important application scenario of plastic injection mold is the plastic product processing plant. In this scenario, plastic injection molds are usually mass-produced for the production of various plastic products. For example, beverage, cosmetics, food and other industries will use plastic bottle cap preform molds to produce plastic caps. The application of plastic cap injection molds in these industries greatly improves production efficiency, reduces production costs, and also ensures the quality of products.
Why choose us?
1. We are specialized in mold manufacturing and production, with perfect mold production and transportation supply chain;
2. We can customize the production mold according to your needs. We are an efficient factory with a strict quality control department, so there is no need to worry about speed and quality.
3. One year after-sales warranty, no worries about buying!
